SpeedAngle APEX GPS Lap Timer & Data Logger

Data Logger and Lap Timer with Lean Angle Measurement

Equipped with aero sensing technology and 10 Hz GPS+GLONASS module, APEX is a one-of-a-kind data logger developed for motorcycle enthusiasts. It is different from other data loggers in the market in that it captures how YOU perform instead of how the bike performs. It measures and records the 3D motion of your ride, including

• lean angles up to R/L 69 degrees,
• longitudinal G’s up to +/- 1.5G,
• speeds up to 255 MPH (410 KMH),
• 10 Hz GPS traces, and
• lap times down to 1/1000 sec.

These essential data help riders analyze their riding style easily, and provide an efficient way to improve the riding skill.

Why Lean Angle Measurement Is Essential

“I know G’s and Speed’s are useful, but why lean angle measurement?”, you might ask. Leaning is what differentiates two-wheel vehicles from four-wheel ones. Unlike cars, Motorcycles lean in order to make a turn. Knowing your speeds and G’s without knowing your lean angles is like missing a piece of the puzzle; something might be missing when you are analyzing your riding skill.

“True, but I’ll know how much I am leaning when I graze my knee puck.”, you might say. The point of lean angle measurement is not how far you can lean, but to know exactly how and where you are leaning in a corner. This, plus the acceleration/deceleration G measurement and GPS trace, can clearly mark how hard and how long you are braking before entering a turn, what your cornering speed is, if the throttle is rolled on again before or after exiting the apex, just to name a few. Only when a motorcyclist knows how he/she is handling a turn can he/she master the art of cornering, and thus the skill of motorcycle riding.

Hands-free Lap Timer

Besides collecting and recording essential motion data, APEX is a hands-free lap timer. It features:

• Auto Track Search,
• Auto Start/Finish Setup – no beacons needed,
• Auto Timer Start,
• Auto Timer Stop,
• Auto Data Logging
• Auto Lap Report Display

In most cases, once you are on a Track, all you need is power APEX on, and then it will take care of itself. This allows you to focus on the more important thing – perform to the best – instead of being distracted by the tool that is supposed to help you.

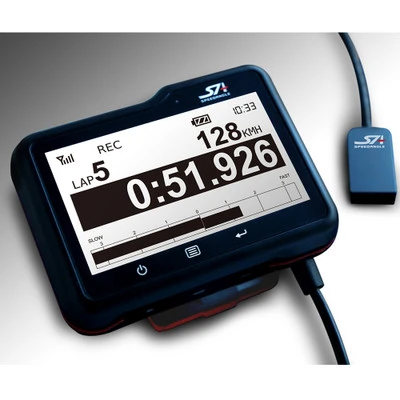

Best Lap Indication

Once you have a new best lap, the whole lap time display area will be highlighted for a pre-designated period of time. Just a glance and you know you have made another progress

Track Setting Manageable

The Start/Finish can be set on the track using the auto set function, or be uploaded beforehand from PC to your device. You can also download the Start/Finish settings from the device to PC to modify them, add splits (up to 7) to them, delete them, or save them as files.

Free Replay and Analysis Software

You can replay your rides log v.s. log or lap v.s. lap with our user-friendly Replay and Analysis software R3 . Here G’s are color coded on the trace, and lean angles are shown real-time with a triangle extending from the bike marker. The motion data are drawn in line graphs. Use the lean angle graph as a reference to find where your turns begin and end. This will provide you with an insight into your cornering skill. You can also open the Lap Time Report to see your lap performance.

Google Earth Replay

You can overlay your logs onto Google Earth and have your rides replayed 3-dimensionally on the satellite photo images of the track. There is no limit to the tracks that can be overlaid onto, as long as they are available on Google Earth. You can see your riding lines against the track border, and a 3D model bike lean and accelerate just as you did. This feature allows you to compare your rides or compare with your friends’ rides as if you are in a virtual race

Driving Mode for Cruising or Twisty Rides

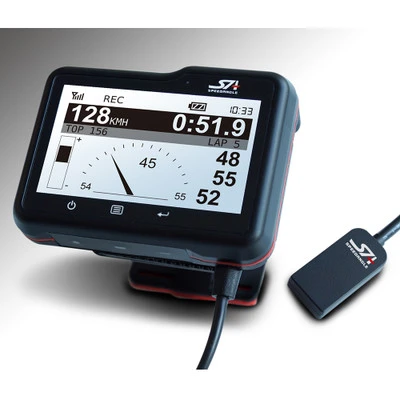

Feeling like going for an easy ride on an open road or to the twisties but would still like your motion data recorded? You can choose to switch to Driving Mode. This mode shows your lean angles real-time with an angle meter, displays the max angles of your last three turns, and records your speeds, G’s, lean angle’s and GPS traces.

Video Overlay

You can purchase video overlay software from our partners dashware.net or racerender.com to do the overlay and make your video look like one from MotoGP.

Easy Installation

The APEX dashboard comes with an AMPS hole pattern compatible bracket. You can either use the supplied 3M dual lock tapes to adhere it to your bike, or use any AMPS hole pattern mount in the market for installation.
The sensor can be installed with the supplied 3M tapes. No additional drilling or wiring is required.



Package Contents:

• Apex Dashboard Unit
• Dashboard Bracket with 3M Dual Lock Tape, Velcro Straps. GoPro® compatible
• Sensor Unit + Sensor Bracket + 3M Dual Lock Tape
• Hex Key Wrench
• 3M Dual Lock Tapes
• Velcro Speedangle Straps for Bracket
• 2 x Bolts for Bracket
• Apex Quick Manual
• Logo Stickers
