Ram Mounts Brake/Clutch Mount & Round Base Adapter With 1/4″-20 Thread For Cameras

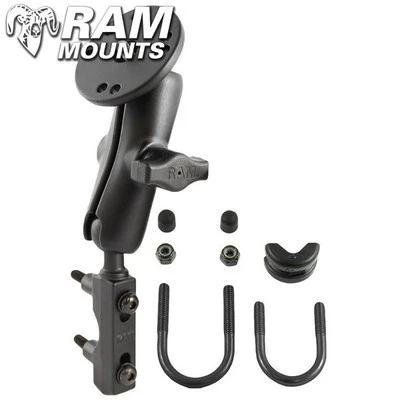

The RAM-B-174-202A consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5″ to 1.25″ in diameter, double socket arm and 2.5″ diameter round base adapter that contains a 1/4″-20 male camera thread. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The included 1/4″-20 threaded steel stud, centered, with round base provides support and stability for cameras that rest on top of it. The male 1/4″-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Material:

• Powder Coated Marine Grade Aluminum

Ball Size:

iPhone 4S
• 1″ Rubber Ball “B” Size iPhone 4

iPhone 3GS

Note: iPhone 3G

iPhone
• Part number reflects product packaged in clear clam shell for store shelf display. To see if the RAM-B-174-202A base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94″ and a maximum of 1.58″.
